Foam Insulation & Adhesive

Refillable Cylinders

Refillable Performance for Foam Insulation & Adhesive Delivery

Worthington Enterprises' refillable foam insulation and adhesive tanks are engineered for consistent performance and long-term durability across commercial, industrial, and construction environments. Whether you're managing a foam insulation delivery system, or operating industrial adhesive spray applications, our steel cylinders deliver safe, reliable service for repeat-use and rigorous job site demands.

The Refillable Solution Pros Rely On

Constructed from heavy-duty steel, our refillable foam insulation and adhesive cylinders are available in 30 lb, 123 lb, 239 lb, and 1,000 lb models with cylinder volumes ranging from 830-27,461 cu. in. Designed with reuse and reliability in mind, these refillable cylinders are manufactured in award-winning facilities recognized for excellence in safety, environmental performance, and process control. From job site efficiency to refill cycle reliability, Worthington's refillable tanks are the trusted choice for adhesive foam insulation spray professionals.

Download Refillable Spec Sheet

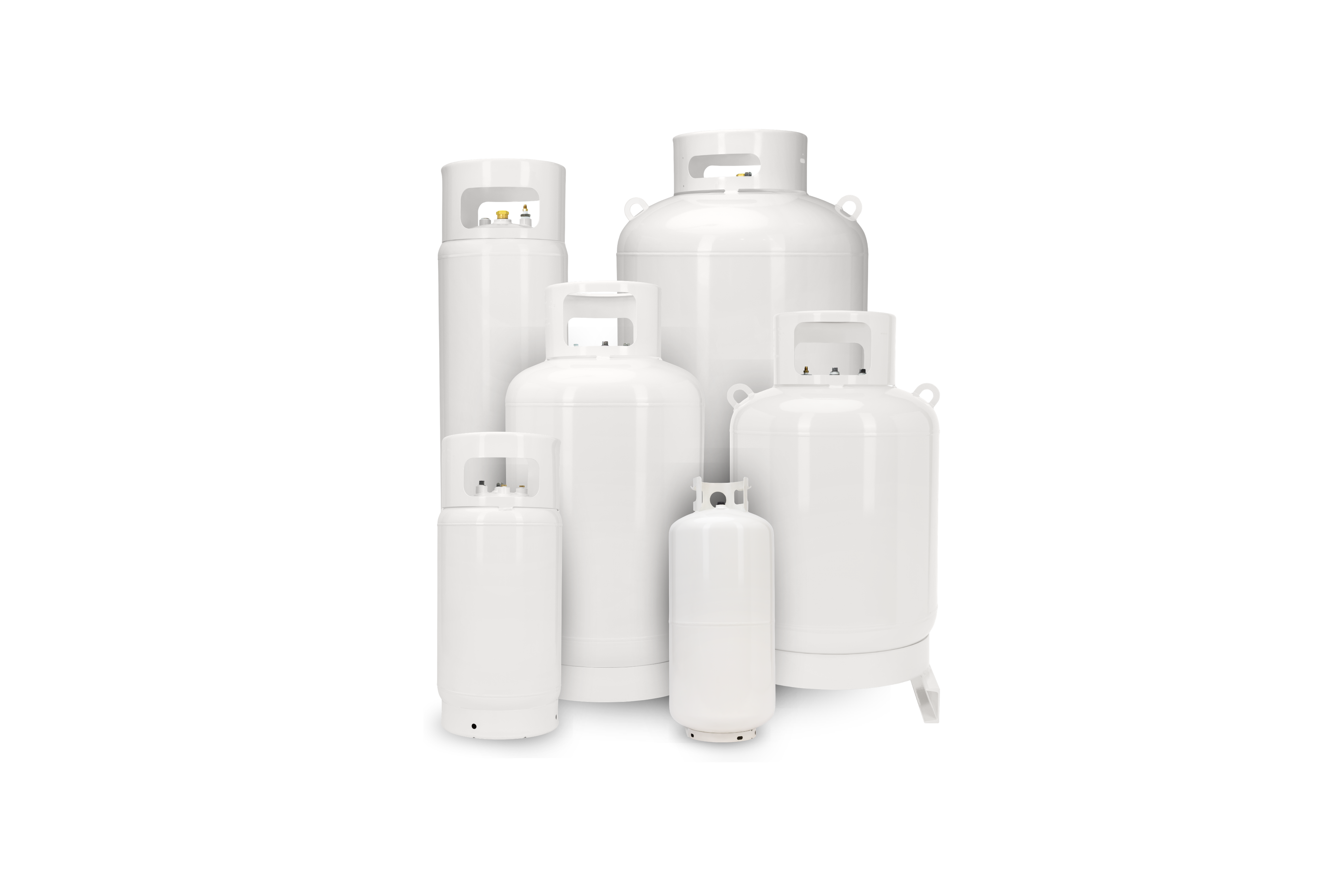

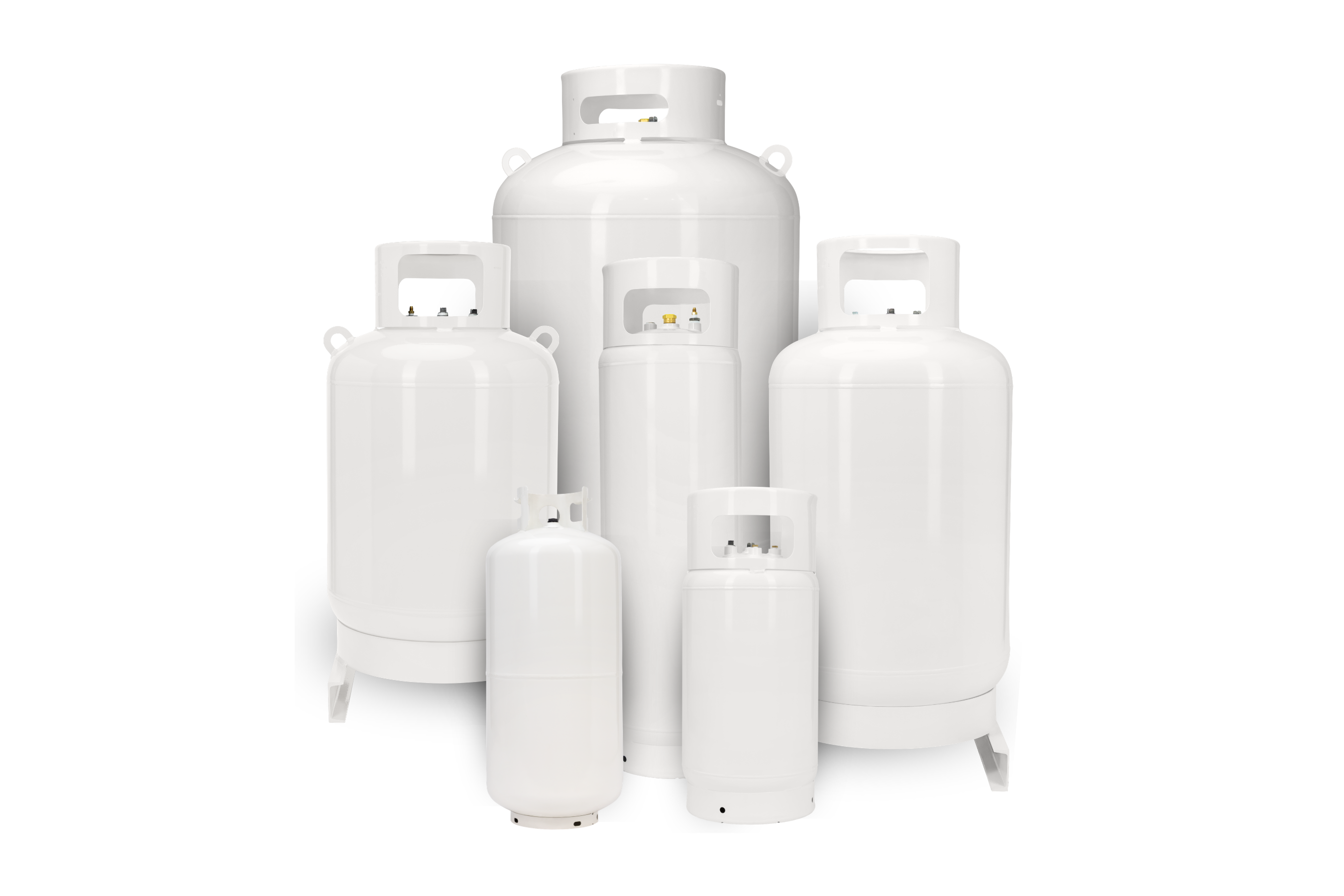

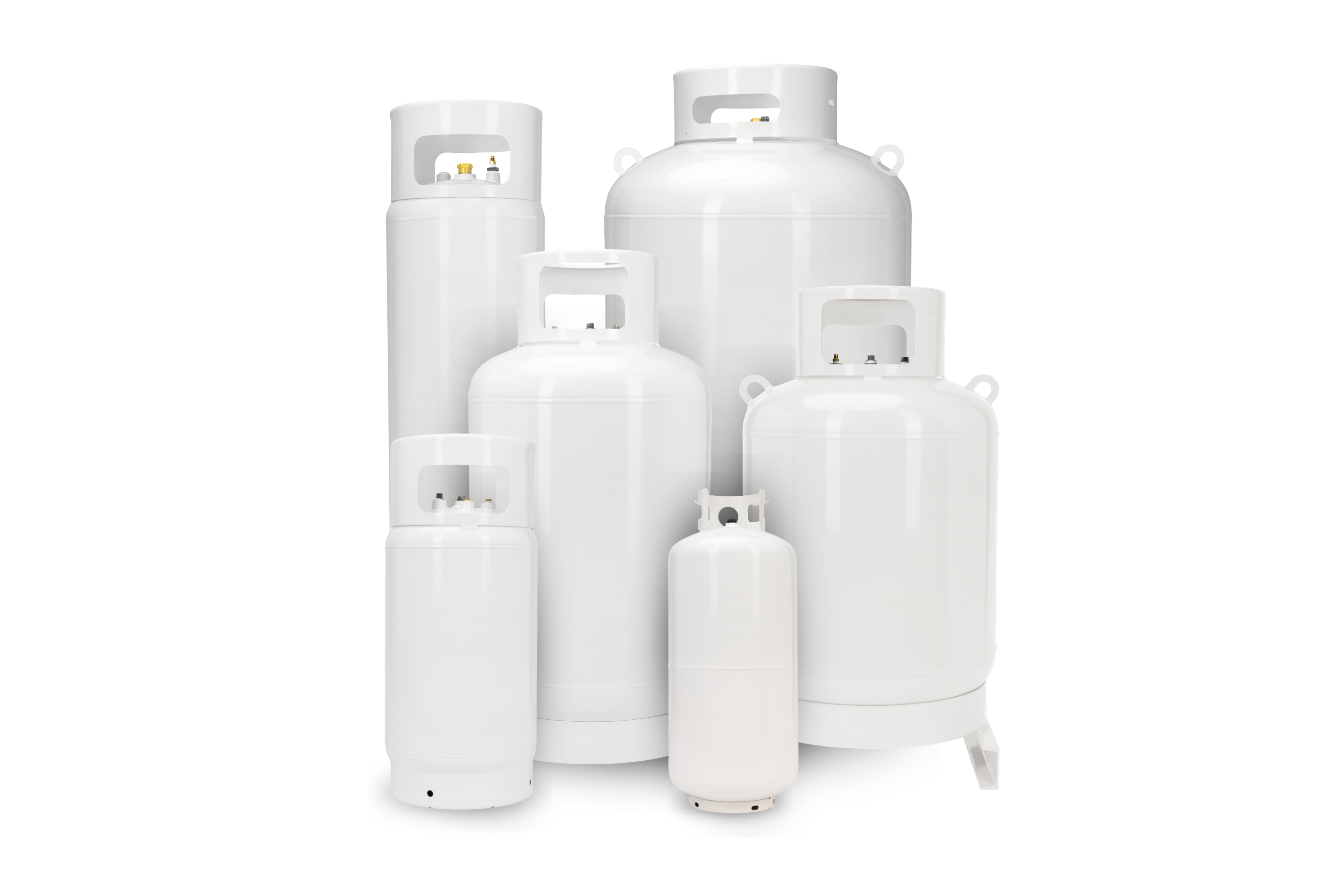

Refillable Cylinders

Cylinder Specifications

Metric

Model/Size	95 lbs	142 lbs	239 lbs	474 lbs	551 lbs	1000 lbs
Height (in)	29	33	49	46	50	56
Water Capacity (lb)	95	142	240	474	550	1,000
Nominal Tare Weight (lb)	28	52	77	145	205	270
Cylinder Diameter (in)	12	15	15	24	24	30
Cylinder Volume (cu. in)	2629.6	3930.56	6643.2	13120.32	15224	27680
Collar Diameter (in)	3	14	14	14	14	16
Collar Height (in)	4	8	8	7.6	7.6	7
Footring Diameter (in)	8	14	14	22	22	22
Standard Specification	DOT-4BA-240	DOT-4BW-240	DOT-4BW-240	DOT-4BW-240	DOT-4BW-240	DOT-4BW-240
Service Pressure (PSIG)	240	240	240	240	240	240
Test Pressure (PSIG)	480	480	480	480	480	480

Have Questions?

We're happy to help.

Get in touch with a specialist.

Model/Size	95 lbs	142 lbs	239 lbs	474 lbs	551 lbs	1000 lbs
Height (mm)	741	848	1250	1170	1270	1422
Water Capacity (L)	43	64	109	215	250	450
Nominal Tare Weight (kg)	13	24	35	66	93	123
Cylinder Diameter (mm)	305	373	373	610	610	762
Cylinder Volume (L)	43	64	109	215	250	450
Collar Diameter (mm)	79	356	356	356	356	406
Collar Height (mm)	100	213	219	193	193	176
Footring Diameter (mm)	198	351	351	559	559	559
Standard Specification	TC-4BAM-16	TC-4BWM-16	TC-4BWM-16	TC-4BWM-16	TC-4BWM-16	TC-4BWM-16
Service Pressure (BAR)	16	16	16	16	16	16
Test Pressure (BAR)	32	32	32	32	32	32
